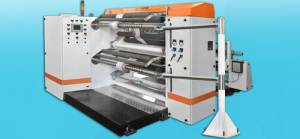

Cantiliver Slitting Machine

The duplex shaft Slitter Rewinder is a Cantiliver type which incorporates a range of superior design feature that ensures the highest possible quality for the final split roll Independent rewind tension control through non-contact ultrasonic techniques for diameter measurement and unique core lock for a differential slip at running speed.  The design incorporates the three motor control system & unwind pneumatic brake with load cell feed brake Digital Edge/line guiding to achieve high-speed correction.

UNWINDER:
Shaftless type heavy duty Unwinder complete with core facility of 76mm & 150mm Core, fitted with pneumatic brake and Load cell actuated the latest line guide system.

SLITTING UNITS: Type of slitting: Razor in groove/circular rotary slitting system.
One full-width capacity grooved roller. Trim removal system: 2 HP blower with full-width Pipe for trimming along with a trim Injector unit. Quick and easy system for change over from one Slitting mode to another and from one slit width to another.

REWINDER: Type of Rewinding: Duplex Cantilever Differential Winding. with pneumatic pressure to maintain slip edge of rewind roll through digital E/P converter with indicator and Ultra-sonic sensor to maintain rewind dia Quick lock unit for rewinding \pneumatically controlled lay on roller operator friendly remote control panel provided at rewind for the electrical and pneumatic system.
1 Nos. Common Servo Motor provided for both rewinders.

NIP UNIT: One full-width capacity hard chrome plated steel roller of 150mm diameter. One full-width capacity rubber roller of 150 mm diameter. Pressure is Pneumatically applied from the operation side of the machine and this unit is controlled by servo motor.

LASER CORE ALIGNMENTS: Assembly fitted on top of the rewind shaft to indicate the position of new core to get exact finish size on every roll change over.

TECHNICAL SPECIFICATIONS:

• Max working Width: 800/ 1600
• Unwind dia: 1000mm
• Rewind dia: 500
• Min Slitting width: 50mm
• M/C Speed: 350/400/450 SERVO MPM

OPTIONAL: Circular knife attachment
